Split Editor
Split your editor into multiple panes to view and edit notes side-by-side. Each pane operates independently with its own tab, scroll position, and content.
Create a split
Section titled “Create a split”Drag a tab toward the edge of the editor area. Drop zones appear as you drag:
| Drop position | Result |
|---|---|
| Left edge | New pane to the left |
| Right edge | New pane to the right |
| Top edge | New pane above |
| Bottom edge | New pane below |
| Center | Move tab into existing pane |
The drop zone highlights with a dashed border to confirm your target.
Resize panes
Section titled “Resize panes”Drag the thin divider between panes to adjust their sizes. The divider highlights on hover and turns to the accent color while dragging. Panes have a minimum width of 200px and minimum height of 150px.
Focus a pane
Section titled “Focus a pane”Click anywhere inside a pane to make it active. The active pane shows a colored border matching your accent color. Only the active pane receives keyboard input and editor commands.
Navigate between panes
Section titled “Navigate between panes”Switch focus between panes without the mouse:
| Action | Description |
|---|---|
| Focus next pane | Cycle forward through panes |
| Focus previous pane | Cycle backward through panes |
| Focus pane by number | Jump to pane 1, 2, 3, etc. |
Move tabs between panes
Section titled “Move tabs between panes”Drag a tab from one pane and drop it onto another pane’s area. The tab moves to the target pane, and the source pane updates accordingly.
Close a pane
Section titled “Close a pane”Click the close button in a pane’s header. If you close the active pane, focus shifts to the first remaining pane. The last pane cannot be closed — there is always at least one editor visible.
Layout
Section titled “Layout”Panes use CSS Grid for layout. Vertical splits add columns; horizontal splits add rows. The layout adapts automatically:

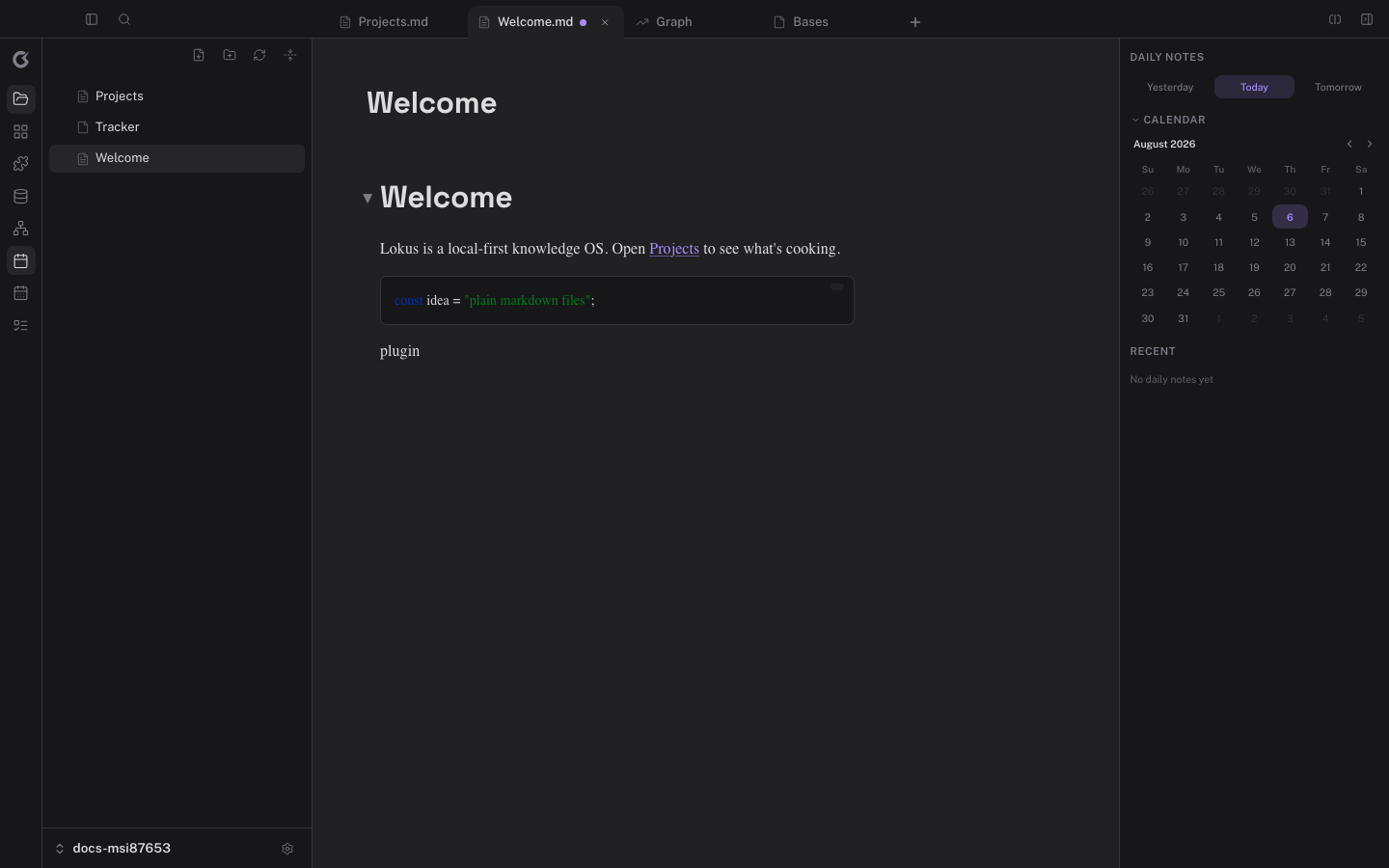

- Vertical split: Two panes side-by-side (
1fr 1frcolumns) - Horizontal split: Two panes stacked (
1fr 1frrows) - Mixed: Combine both directions for 3+ pane layouts
Drag-and-drop details
Section titled “Drag-and-drop details”Split editor uses @dnd-kit/core for drag interactions. A 10px distance threshold prevents accidental drags. While dragging, a floating preview shows the tab name with a slight rotation for visual feedback.
Accessibility
Section titled “Accessibility”- Active pane has a visible focus outline
- Pane resizers are keyboard-focusable
- Supports
prefers-reduced-motion(disables animations) - Supports
prefers-contrast: high(thicker borders) - Print styles hide resizers and controls
