Graph View

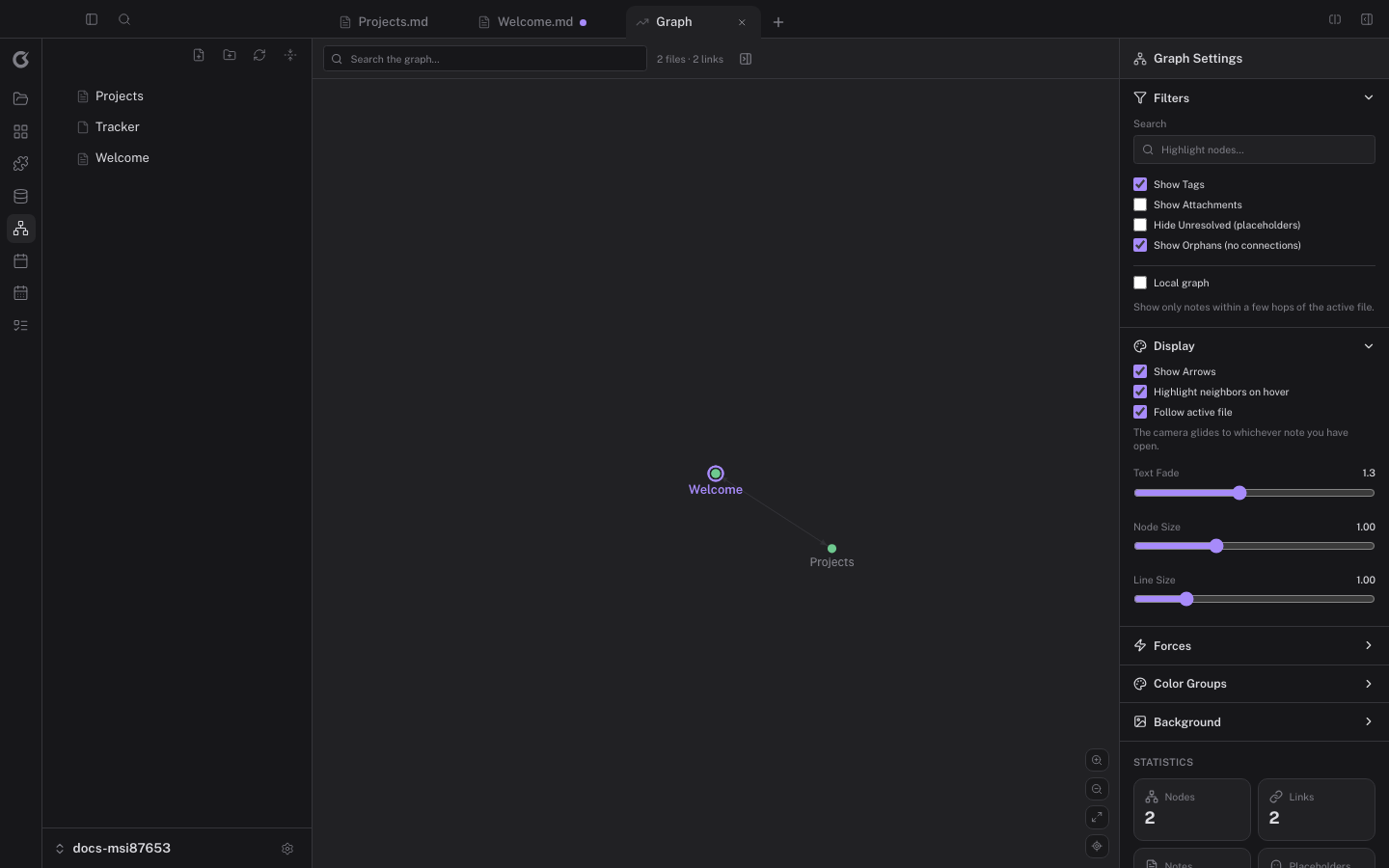

The graph view shows every note in your workspace as a node and every wiki link as an edge. Open it from the sidebar or via the command palette.

View modes

Switch between three view modes using the toolbar buttons or keyboard shortcuts:

Mode	Shortcut (macOS)	Shortcut (Win/Linux)	Description
2D	`Cmd+1`	`Ctrl+1`	Flat force-directed graph using `react-force-graph-2d`
3D	`Cmd+2`	`Ctrl+2`	Three-dimensional graph using `react-force-graph-3d` and Three.js
Force	`Cmd+3`	`Ctrl+3`	Alternative force-directed layout

All modes use D3 force simulation under the hood. The 3D mode adds depth and camera rotation via Three.js.

Node types

The graph contains several node types, each rendered differently:

Document nodes — Your Markdown files. Sized by word count or connection count (configurable).
Placeholder nodes — Wiki link targets that do not yet have a corresponding file. These appear when you link to a note that does not exist.
Tag nodes — When tag display is enabled, tags appear as separate nodes connected to the notes that use them.

Interacting with the graph

Click a node to select it. Its details appear in the graph sidebar.
Click a document node to open that note in the editor.
Hover a node to see its label and highlight its connections.
Scroll to zoom in and out.
Drag the background to pan.
Drag a node to reposition it. The simulation adjusts around it.

Search

Type in the search bar at the top of the graph view to find nodes by name. Results highlight in the graph.

Reset

Press Cmd+R / Ctrl+R to reset the graph layout and zoom to fit all nodes.

Layout simulation

Press Space to pause or resume the force simulation. Pausing freezes nodes in place so you can inspect the layout without it shifting.

The sidebar panel on the right shows:

Selected node details

When you click or hover a node, the sidebar shows:

Node name and type
Backlink count
Word count
Tags
A list of connected nodes (click any to navigate to it)

Filters section

Control which nodes are visible:

Show orphans — Toggle nodes with no connections
Show tags — Toggle tag nodes
Show attachments — Toggle image and attachment nodes

Display section

Configure how nodes look:

Color scheme — Color nodes by type, folder, or custom groups
Color groups — Define custom groupings with colors
Node size — Scale node size by word count, connection count, or a fixed size

Forces section

Tune the physics simulation:

Repel strength — How strongly nodes push each other away
Link distance — Target distance between connected nodes
Link strength — How strongly links pull connected nodes together
Center strength — How strongly nodes are pulled toward the center

Changes apply in real time. The graph view saves your configuration per workspace and restores it on next open.

Animation tour

Start an animation tour that cycles through nodes one by one, zooming to each in sequence. Adjust the speed (milliseconds per node) in the sidebar. Press the play/pause button to start or stop.

Focused graph view

The focused graph view is a small graph panel that appears in the sidebar next to the editor. It shows only the current note and its direct connections (up to 10 links).

It updates as you edit — when you add or remove wiki links, the focused graph reflects the change after a 300ms debounce.

Click any node in the focused graph to open that note.

Performance

The graph handles large workspaces:

File tree changes are debounced (150ms) and compared by hash to avoid redundant reloads
Bulk file reading loads all Markdown files in one Tauri invoke call
Performance mode available for very large graphs (10,000+ nodes)
Performance stats (node count, link count, FPS, memory) available via the stats panel
